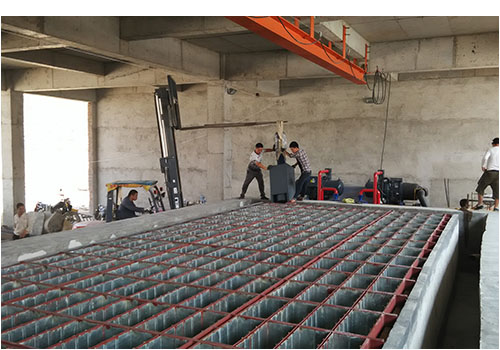

Model:FIB-200S

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 20000
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 88.5
Installment power Kw 105
Operating power of cold water pump Kw 5.5
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 155.7
Operating power Kw 77.1
Compressor COP/EER Kw/kw 2.3
Horse power Hp 40×3
Condenser power Kw 7.7
Cooling way   Water cooling
Working time Ice making time h 7.5
Ice doffing time h 0.5
Dimension Weight of each block Kg/block 50
Size of block ice (L×W×H)(mm) 480×160×700
Size of cooling tower (L×W×H)(mm) Ф2650×2645mm
Size of water feeding pipe   1-1/4"
Operating weight of cooling tower Kg 1300
Water supply pressure requirement Bar 1
