Model:FIP-240
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 24000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 3 |
| Warm water pump | Kw | 1.1 | |
| Ice cutter | Kw | 2.5 | |
| Cooling tower fan | Kw | 2.5 | |
| Cooling water pump | Kw | 5.5 | |
| Total running power | Kw | 100.1 | |
| Installment power | Kw | 125 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 177.2 | |
| Operating power | Kw | 85.8 | |
| Compressor COP/EER | Kw/kw | 2.07 | |
| Horse power | Hp | 70×2sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | (L×W×H)(mm) | 2700×2200×2200 |
| Number of evaporator | 1PC | ||
| Size of evaporator | (L×W×H)(mm) | 4500×2200×2450 | |
| Size of ice outlet | (L×W)(mm) | 1500×300 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2650×2565 | |
| Size of water feeding pipe of cooling tower | 1" | ||
| Size of cooling water pipes | 4" | ||
| Size of water feeding pipe | 1" | ||
| Operating weight | Unit | Kg | 2450 |
| Evaporator | Kg | 3250 | |
| Cooling tower | Kg | 1300 | |
| Water supply pressure requirement | Bar | 1 | |

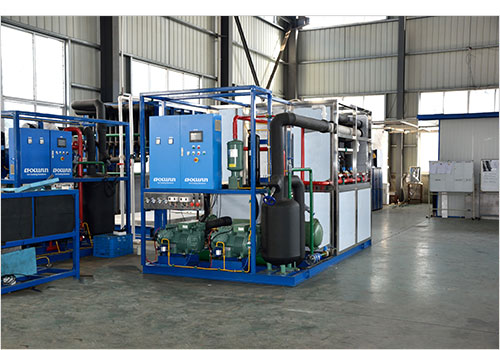

Plate ice machine FIP-240Other Model:
