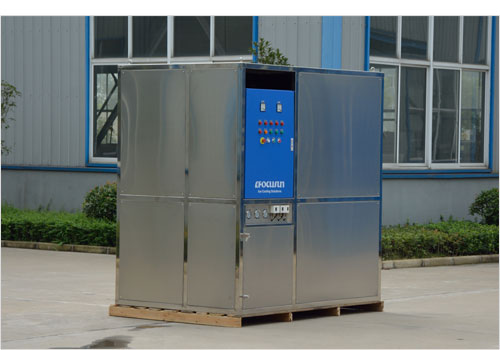

Home > Plate ice machine > Plate ice machine FIP-20 - Focusun Ice Machine
Model:FIP-20

Subject Unit Technical parameter
Powersupply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 2000
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Operating power of cutter Kw 0.55
Operating power of cold water pump Kw 0.55
Warm water pump Kw 0.37
Total running power Kw 9.92
Installment power Kw 12
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 14.38
Operating power Kw 7.65
Compressor COP/EER Kw/kw 1.88
Horse power Hp 10
Condenser Fan power Kw 0.8
Cooling way   Air cooling
Installment    Internaly installed
Dimension Size of ice maker (L×W×H)(mm) 2200×1600×2000
Size of condenser (L×W×H)(mm)  --
Size of water feeding pipe   1/2"
Operating weight Operating weight of plate ice maker Kg 1200
Operating weight of condenser Kg  --
Water supply pressure requirement Bar 1
