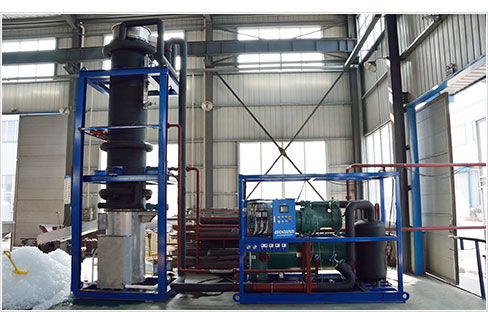

Home > Tube ice machine > Tube ice machine FIT-400 - Focusun Ice Machine
Model:FIT-400

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 40000
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 139.6
Installment power Kw 170
Operating power of cutter Kw 3.7
Operating power of cold water pump Kw 5.5
Fan motor of cooling tower Kw 3.7
Operating power of cold water pump Kw 7.5
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 297.2
Operating power Kw 119.2
Compressor COP/EER Kw/kw 2.5
Horse power Hp 50×4
Cooling way   Water cooling
Dimension Size of ice maker (L×W×H)(mm) Unit:3600×2200×2000
Evaporator:1500×1500×5800
Size of cooling tower (O.D×H)(mm) Φ3770×3490
Size of liquid pipe of cooling tower   1-1/4"
Size of cooling water pipe   4"
Size of waterinlet pipe of ice maker   1-1/4"
Size of ice outlet mm 500×400
Weight of unit Operating weight of tube ice maker Kg Unit:4250
Evaporator:5890
Operating weight of cooling tower Kg 2730
Water supply pressure requirement Bar 1.5
