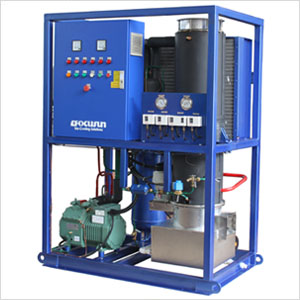

Home > Tube ice machine > Tube ice machine FIT-15 - Focusun Ice Machine
Model:FIT-15

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 1500
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 5.33
Installment power Kw 7
Operating power of cutter Kw 0.37
Operating power of cold water pump Kw 0.55
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 10.54
Operating power Kw 4.31
Compressor COP/EER Kw/kw 2.45
Horse power Hp 6
Condenser Fan power Kw 0.7
Cooling way   Air cooling
Dimension Size of ice maker (L×W×H)(mm) 1500×800×1800
Size of condenser (L×W×H)(mm) 1200×450×750
Size of water feeding pipe   1/2"
Weight of unit Operating weight of tube ice maker Kg 820
Operating weight of condenser Kg 62
Water supply pressure requirement Bar 1
