Home > Tube ice machine > Tube ice machine FIT-20 - Focusun Ice Machine

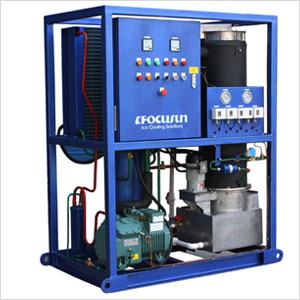

Model:FIT-20


Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 2000
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 8.36
Installment power Kw 10
Operating power of cutter Kw 0.37
Operating power of cold water pump Kw 0.55
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 15.49
Operating power Kw 6.34
Compressor COP/EER Kw/kw 2.44
Horse power Hp 9
Condenser Fan power Kw 1.1
Cooling way   Air cooling
Dimension Size of ice maker (L×W×H)(mm) 1600×800×2000
Size of condenser (L×W×H)(mm) 1200×1150×1350
Size of water feeding pipe   1/2"
Weight of unit Operating weight of tube ice maker Kg 910
Operating weight of condenser Kg 88
Water supply pressure requirement Bar 1
