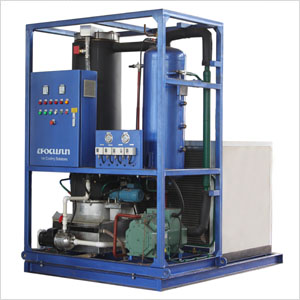

Home > Tube ice machine > Tube ice machine FIT-35 - Focusun Ice Machine
Model:FIT-35

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 3500
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 12.83
Installment power Kw 16
Operating power of cutter Kw 0.37
Operating power of cold water pump Kw 0.55
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 28.4
Operating power Kw 10.71
Compressor COP/EER Kw/kw 2.65
Horse power Hp 20
Condenser Fan power Kw 1.2
Cooling way   Air cooling
Dimension Size of ice maker (L×W×H)(mm) 1800×920×2000
Size of condenser (L×W×H)(mm) 2000×1100×1350
Size of water feeding pipe   1/2"
Weight of unit Operating weight of tube ice maker Kg 1380
Operating weight of condenser Kg 145
Water supply pressure requirement Bar 1
