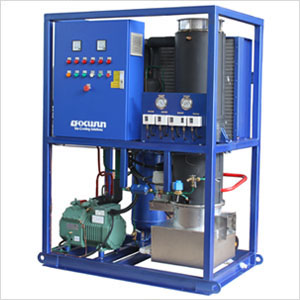

Home > Tube ice machine > Tube ice machine FIT-10 - Focusun Ice Machine
Model:FIT-10

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant / R22 or R404A
Capacity Kg/day 1000
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 4.74
Installment power Kw 6
Operating power of cutter Kw 0.37
Operating power of cold water pump Kw 0.55
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 7.75
Operating power Kw 3.12
Compressor COP/EER Kw/kw 2.49
Horse power Hp 4
Condenser Fan power Kw 0.7
Cooling way   Air cooling
Dimension Size of ice maker (L×W×H)(mm) 1400×800×1800
Size of condenser (L×W×H)(mm) 1200×400×750
Size of water feeding pipe   1/2"
Weight of unit Operating weight of tube ice maker Kg 780
Operating weight of condenser Kg 48
Water supply pressure requirement Bar 1
